Encoder
8:3 Encoder

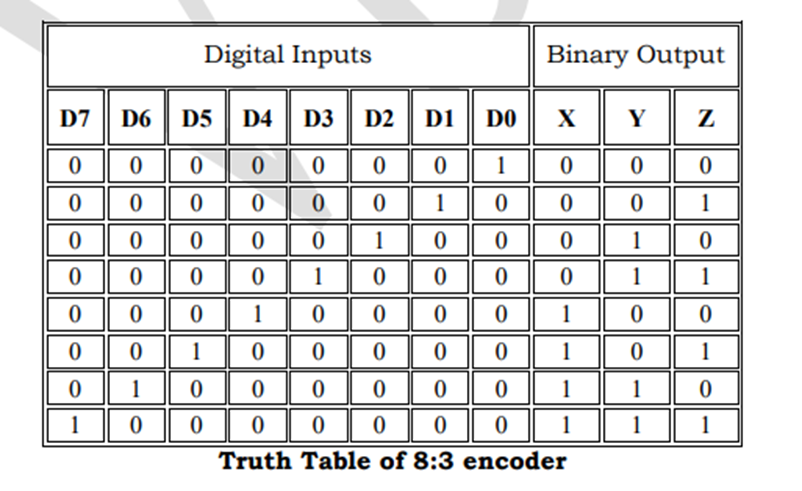

AIM:
To develop HDL code for 8:3 Encoder.
Tools/Software
Required:
1.
Personal Computer.
2.
Vivado 2019.2 Software
3.
Verilog/VHDL
Procedure:
1.
Click on Vivado2017.2
icon.A window is opened.
2.
Click on File→New
Project→Press
Next→Give the Project name and Project Location→Press Next→Choose Project Type as RTL Project→Press
Next→
3.
Create File→File
Type: VHDL\Verilog File Name→ Filename→Press Next→ Press Next→ Press Next→Finish.
4.
Write the module
definition by giving input ports and
output ports →Press Ok.
5.
Two workspaces are opened with names Project Manager and Flow Navigator
6.
In Project
Manager →Click on Sources →Design Sources→File→A window is opened with File
name. Write the Program in the File →Click on Save.
7.
In Flow
Navigator→Click on Simulation →Run Simulation→Run Behavioural Simulation→A window is
opened with name “untitled1”→Force Constants→Run
for 100 µs. Observe the simulation results for various combinations by
clicking on Zoom Out.
VHDL Code
for 8:3 Encoder
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.NUMERIC_STD.ALL;
entity encoder is
Port (
en : in STD_LOGIC;
a_in
: in STD_LOGIC_VECTOR (7 downto 0);
y_op
: out STD_LOGIC_VECTOR (2 downto 0));
end encoder;
architecture Behavioral of
encoder is
begin
process(en,a_in)
begin
if(en='1') then
y_op <= "ZZZ";
else
case(a_in) is
when "00000001" =>
y_op <= "000";
when "00000010" =>
y_op <= "001";
when "00000100" =>
y_op <= "010";
when "00001000" =>
y_op <= "011";
when "00010000" =>
y_op <= "100";
when "00100000" =>
y_op <= "101";
when "01000000" =>
y_op <= "110";
when "10000000" =>
y_op <= "111";
when others => null;
end case;
end if;
end process;
end Behavioral;
RTL Schematics
for 8:3 Encoder
Simulation Waveform for 8:3
Encoder
Verilog Program for 8:3 Encoder:
module Encod(d0,d1,d2,d3,d4,d5,d6,d7,x,y,z);
input d0,d1,d2,d3,d4,d5,d6,d7;
output x,y,z;
or(x,d4,d5,d6,d7);
or(y,d2,d3,d6,d7);
or(z,d1,d3,d5,d7);
endmodule
RTL Schematics for 8:3 Encoder:
Simulation Waveform for 8:3 Encoder:
Result:
The 8:3 encoder is simulated using Vivado2019.1 software on an I3 Processor with 64-bit Operating System
